重现步骤

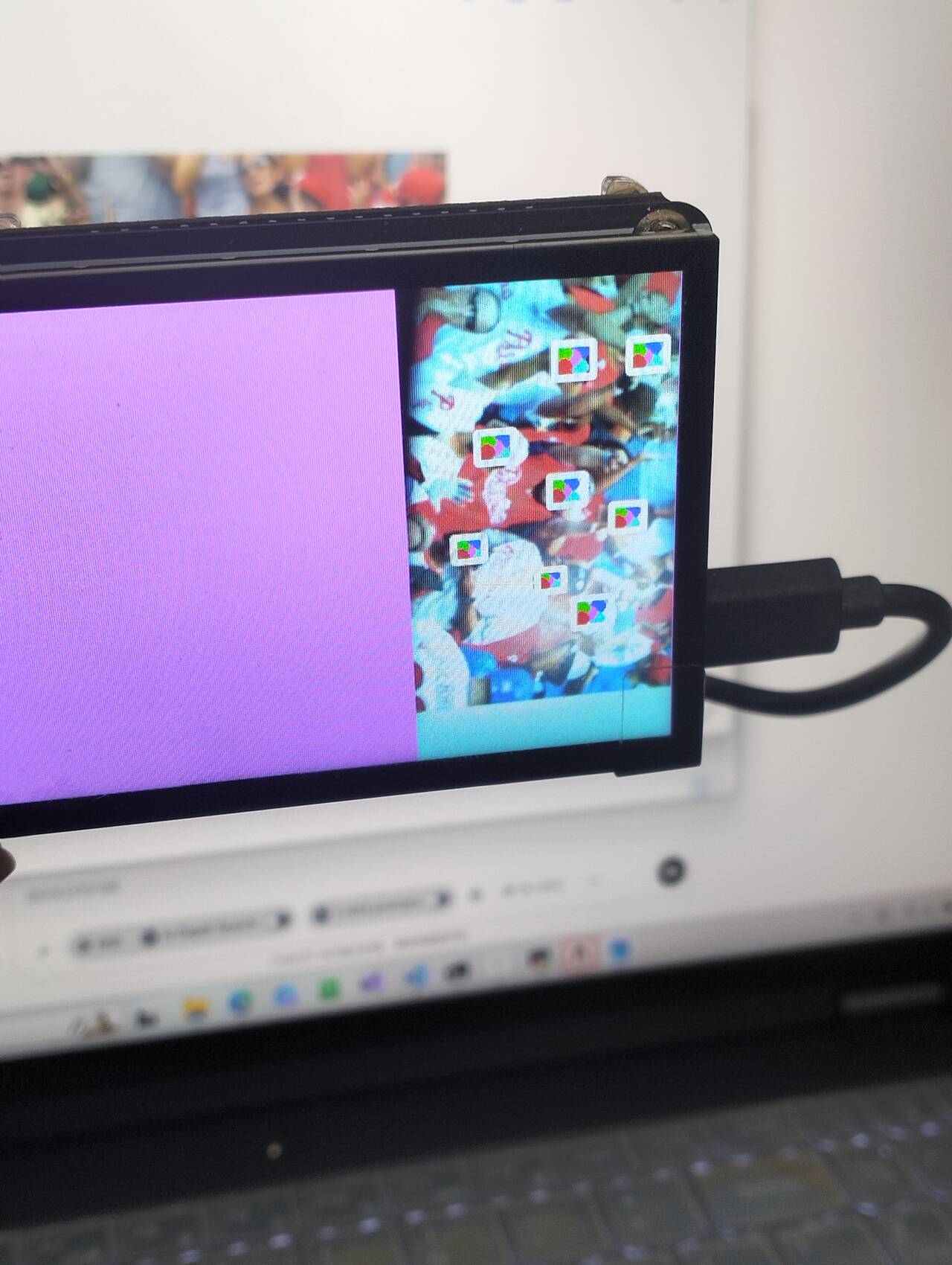

正常编译AI Demo后，画面只显示在LCD屏幕的部分区域上：
https://developer.canaan-creative.com/k230_linux/dev/zh/01_software/K230_AI_Demo%E4%BD%BF%E7%94%A8%E6%8C%87%E5%8D%97.html
期待结果和实际结果
软硬件版本信息
错误日志
尝试解决过程
\k230_linux_sdk\buildroot-overlay\package\ai_demo\face_detection\main.cc文件中的display_proc函数中添加context.drm_rotation = rotation_270;无效
static void display_proc(int video_device)
{
struct v4l2_drm_context context;
v4l2_drm_default_context(&context);
context.device = video_device;
context.width = display->width;
context.height = (display->width * SENSOR_HEIGHT / SENSOR_WIDTH) & 0xfff8;
context.video_format = V4L2_PIX_FMT_BGR24;
context.display_format = 0; // auto
context.drm_rotation = rotation_270; // 添加本行也无效
if (v4l2_drm_setup(&context, 1, &display)) {
std::cerr << "v4l2_drm_setup error" << std::endl;
return;
}
std::cout << "press 'q' to exit" << std::endl;
std::cout << "press 'd' to save a picture" << std::endl;
gettimeofday(&tv, NULL);
v4l2_drm_run(&context, 1, frame_handler);
if (display) {
display_exit(display);
}
ai_stop.store(true);
return;
}
补充材料
运行日志：
[root@canaan /sharefs/face_detection ]#./face_detect_isp.sh
case ./face_detection.elf built at Mar 7 2025 11:28:55
[display] enc_id 47 crtc0 id 46 mask 1 possible 1
[display] enc_id: 47
[display] crtc_id: 46
display_get_plane get yuv plane fourcc is 875710274 DRM_FORMAT_NV12 is 842094158
[display] Added plane prop 8:type
[display] Added plane prop 17:FB_ID
[display] Added plane prop 18:IN_FENCE_FD
[display] Added plane prop 20:CRTC_ID
[display] Added plane prop 13:CRTC_X
[display] Added plane prop 14:CRTC_Y
[display] Added plane prop 15:CRTC_W
[display] Added plane prop 16:CRTC_H
[display] Added plane prop 9:SRC_X
[display] Added plane prop 10:SRC_Y
[display] Added plane prop 11:SRC_W
[display] Added plane prop 12:SRC_H
[display] Added plane prop 30:IN_FORMATS
[ 929.445451] vvcam-isp 90000000.isp.0: vvcam_isp_open:99
[ 929.465239] vvcam-isp 90000000.isp.0: reset
[ 929.469930] vvcam-isp 90000000.isp.0: reset
[v4l2-drm] /dev/[ 929.511246] 480 x 264 size 380160 fmt BGR3
video1 support format NV16
[v4l2-drm] /dev/video1 support format NV12
[v4l2-drm] /dev/video1 support format YUYV
[v4l2-drm] /dev/video1 support format BGR3
[v4l2-drm] /dev/video1 support format BG3P
[v4l2-drm] /dev/video1 support format P010
press 'q' to exit
press 'd' to save a picture
[ 929.604018] vvcam-mipi 9000a800.mipi.0: vvcam_mipi_open
[ 929.609392] vvcam-mipi 9000a800.mipi.0: csi reset
[ 929.614141] vvcam-mipi 9000a800.mipi.0: sensor reset
[ 929.619780] vvcam-mipi 9000a800.mipi.0: csi reset
[ 929.624530] vvcam-mipi 9000a800.mipi.0: sensor reset
[ 929.629824] vvcam-mipi 9000a800.mipi.0: set dev attr
[ 929.634844] vvcam-mipi 9000a800.mipi.0: lanes: 2
[ 929.639484] vvcam-mipi 9000a800.mipi.0: format: 43
[ 929.644291] vvcam-mipi 9000a800.mipi.0: PHY freq: 800M
[ 929.649438] kd_vi_bind_source source(4), port(0)
[ 930.715135] wait stop timeout
[ 930.730665] vvcam_cma_alloc *paddr is 20052000 size is 8192
[ 930.866722] vvcam_cma_alloc *paddr is 20600000 size is 4149248
[ 930.878747] vvcam_cma_alloc *paddr is 20a00000 size is 1040384
poll: 0.38, [ 932.181117] 1920 x 1080 size 6220800 fmt BG3P
[v4l2-drm] /dev/video2 support format NV16
[v4l2-drm] /dev/video2 support format NV12
[v4l2-drm] /dev/video2 support format YUYV
[v4l2-drm] /dev/video2 support format BGR3
[v4l2-drm] /dev/video2 support format BG3P
[v4l2-drm] /dev/video2 support format P010
poll: 60.01, display: 60.01, camera: 28.53, KPU: 27.54
Linux启动日志,似乎drm的部分存在报错：
