您好，已将kd_mp4*系列更底层的mp4封装接口公开，并提供了参考demo，以便您更灵活的控制。请参考以下demo来完成您的功能。
from media.mp4format import *
from mpp.mp4_format import *
from mpp.mp4_format_struct import *
from media.vencoder import *
from media.sensor import *
from media.media import *
import uctypes
import time
import os
def mp4_muxer_init(file_name, fmp4_flag):
mp4_cfg = k_mp4_config_s()
mp4_cfg.config_type = K_MP4_CONFIG_MUXER
mp4_cfg.muxer_config.file_name[:] = bytes(file_name, 'utf-8')
mp4_cfg.muxer_config.fmp4_flag = fmp4_flag
handle = k_u64_ptr()
ret = kd_mp4_create(handle, mp4_cfg)
if ret:
raise OSError("kd_mp4_create failed.")
return handle.value
def mp4_muxer_create_video_track(mp4_handle, width, height, video_payload_type):
video_track_info = k_mp4_track_info_s()
video_track_info.track_type = K_MP4_STREAM_VIDEO
video_track_info.time_scale = 1000
video_track_info.video_info.width = width
video_track_info.video_info.height = height
video_track_info.video_info.codec_id = video_payload_type
video_track_handle = k_u64_ptr()
ret = kd_mp4_create_track(mp4_handle, video_track_handle, video_track_info)
if ret:
raise OSError("kd_mp4_create_track failed.")
return video_track_handle.value
def mp4_muxer_create_audio_track(mp4_handle,channel,sample_rate, bit_per_sample ,audio_payload_type):
audio_track_info = k_mp4_track_info_s()
audio_track_info.track_type = K_MP4_STREAM_AUDIO
audio_track_info.time_scale = 1000
audio_track_info.audio_info.channels = channel
audio_track_info.audio_info.codec_id = audio_payload_type
audio_track_info.audio_info.sample_rate = sample_rate
audio_track_info.audio_info.bit_per_sample = bit_per_sample
audio_track_handle = k_u64_ptr()
ret = kd_mp4_create_track(mp4_handle, audio_track_handle, audio_track_info)
if ret:
raise OSError("kd_mp4_create_track failed.")
return audio_track_handle.value
def vi_bind_venc_mp4_test(file_name,width=1280, height=720,venc_payload_type = K_PT_H264,fmp4_flag = False):
print("venc_test start")
venc_chn = VENC_CHN_ID_0
width = ALIGN_UP(width, 16)
frame_data = k_mp4_frame_data_s()
save_idr = bytearray(width * height * 3 // 4)
idr_index = 0
# mp4 muxer init
mp4_handle = mp4_muxer_init(file_name, fmp4_flag)
# create video track
if venc_payload_type == K_PT_H264:
video_payload_type = K_MP4_CODEC_ID_H264
elif venc_payload_type == K_PT_H265:
video_payload_type = K_MP4_CODEC_ID_H265
mp4_video_track_handle = mp4_muxer_create_video_track(mp4_handle, width, height, video_payload_type)
# 初始化sensor
sensor = Sensor()
sensor.reset()
# 设置camera 输出buffer
# set chn0 output size
sensor.set_framesize(width = width, height = height, alignment=12)
# set chn0 output format
sensor.set_pixformat(Sensor.YUV420SP)
# 实例化video encoder
encoder = Encoder()
# 设置video encoder 输出buffer
encoder.SetOutBufs(venc_chn, 8, width, height)
# 绑定camera和venc
link = MediaManager.link(sensor.bind_info()['src'], (VIDEO_ENCODE_MOD_ID, VENC_DEV_ID, venc_chn))
# init media manager
MediaManager.init()
if (venc_payload_type == K_PT_H264):
chnAttr = ChnAttrStr(encoder.PAYLOAD_TYPE_H264, encoder.H264_PROFILE_MAIN, width, height)
elif (venc_payload_type == K_PT_H265):
chnAttr = ChnAttrStr(encoder.PAYLOAD_TYPE_H265, encoder.H265_PROFILE_MAIN, width, height)
streamData = StreamData()
# 创建编码器
encoder.Create(venc_chn, chnAttr)
# 开始编码
encoder.Start(venc_chn)
# 启动camera
sensor.run()
frame_count = 0
print("save stream to file: ", file_name)
video_start_timestamp = 0
get_first_I_frame = False
try:
while True:
os.exitpoint()
encoder.GetStream(venc_chn, streamData) # 获取一帧码流
stream_type = streamData.stream_type[0]
# Retrieve first IDR frame and write to MP4 file. Note: The first frame must be an IDR frame.
if not get_first_I_frame:
if stream_type == encoder.STREAM_TYPE_I:
get_first_I_frame = True
video_start_timestamp = streamData.pts[0]
save_idr[idr_index:idr_index+streamData.data_size[0]] = uctypes.bytearray_at(streamData.data[0], streamData.data_size[0])
idr_index += streamData.data_size[0]
frame_data.codec_id = video_payload_type
frame_data.data = uctypes.addressof(save_idr)
frame_data.data_length = idr_index
frame_data.time_stamp = streamData.pts[0] - video_start_timestamp
ret = kd_mp4_write_frame(mp4_handle, mp4_video_track_handle, frame_data)
if ret:
raise OSError("kd_mp4_write_frame failed.")
encoder.ReleaseStream(venc_chn, streamData)
continue
elif stream_type == encoder.STREAM_TYPE_HEADER:
save_idr[idr_index:idr_index+streamData.data_size[0]] = uctypes.bytearray_at(streamData.data[0], streamData.data_size[0])
idr_index += streamData.data_size[0]
encoder.ReleaseStream(venc_chn, streamData)
continue
else:
encoder.ReleaseStream(venc_chn, streamData) # 释放一帧码流
continue
# Write video stream to MP4 file （not first idr frame）
frame_data.codec_id = video_payload_type
frame_data.data = streamData.data[0]
frame_data.data_length = streamData.data_size[0]
frame_data.time_stamp = streamData.pts[0] - video_start_timestamp
#print("video size: ", streamData.data_size[0], "video type: ", streamData.stream_type[0],"video timestamp:",frame_data.time_stamp)
ret = kd_mp4_write_frame(mp4_handle, mp4_video_track_handle, frame_data)
if ret:
raise OSError("kd_mp4_write_frame failed.")
encoder.ReleaseStream(venc_chn, streamData) # 释放一帧码流
frame_count += 1
print("frame_count = ", frame_count)
if frame_count >= 200:
break
except KeyboardInterrupt as e:
print("user stop: ", e)
except BaseException as e:
import sys
sys.print_exception(e)
# 停止camera
sensor.stop()
# 销毁camera和venc的绑定
del link
# 停止编码
encoder.Stop(venc_chn)
# 销毁编码器
encoder.Destroy(venc_chn)
# 清理buffer
MediaManager.deinit()
# mp4 muxer destroy
kd_mp4_destroy_tracks(mp4_handle)
kd_mp4_destroy(mp4_handle)
print("record mp4 done")

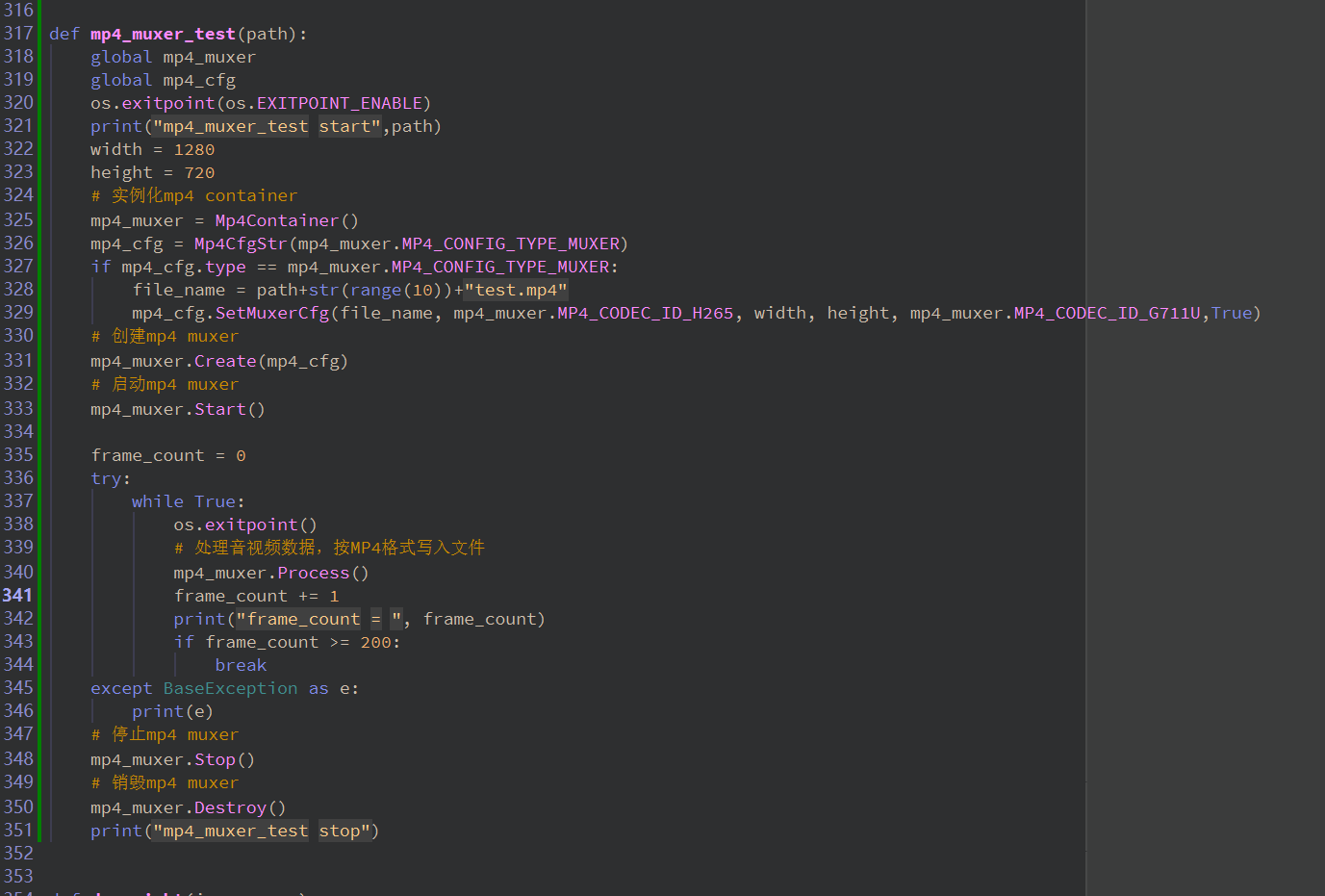

def mp4_muxer_test():
print("mp4_muxer_test start")
width = 1280
height = 720
# 实例化mp4 container
mp4_muxer = Mp4Container()
mp4_cfg = Mp4CfgStr(mp4_muxer.MP4_CONFIG_TYPE_MUXER)
if mp4_cfg.type == mp4_muxer.MP4_CONFIG_TYPE_MUXER:
file_name = "/sdcard/test.mp4"
mp4_cfg.SetMuxerCfg(file_name, mp4_muxer.MP4_CODEC_ID_H265, width, height, mp4_muxer.MP4_CODEC_ID_G711U,True)
# 创建mp4 muxer
mp4_muxer.Create(mp4_cfg)
# 启动mp4 muxer
mp4_muxer.Start()
frame_count = 0
try:
while True:
os.exitpoint()
# 处理音视频数据，按MP4格式写入文件
mp4_muxer.Process()
frame_count += 1
print("frame_count = ", frame_count)
if frame_count >= 200:
break
except BaseException as e:
print(e)
# 停止mp4 muxer
mp4_muxer.Stop()
# 销毁mp4 muxer
mp4_muxer.Destroy()
print("mp4_muxer_test stop")
if __name__ == "__main__":
os.exitpoint(os.EXITPOINT_ENABLE)
vi_bind_venc_mp4_test("/sdcard/examples/test.mp4", 1280, 720)
#mp4_muxer_test()
